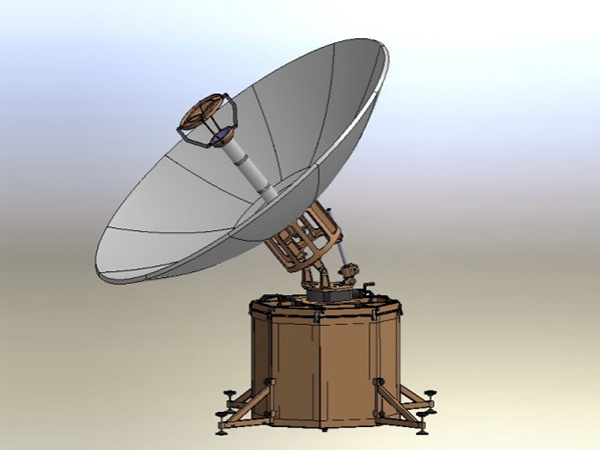

2.4m C-band Carbon Fiber Flyaway Antenna
Features of 2.4m C-band Carbon Fiber Flyaway Antenna
● 11 carbon fiber panels
● High gain and excellent sidelobe performance
● 15 Minutes Setup
● Easy & fast fine elevation adjustment
● Two cases
Approvals or Compliance
● ASIASAT
● APT
● CHINA SATCOM
● SINOSAT
● INTELSAT
● EUTELSAT
Main parts
● Feed horn
● OMT & Filter
● Panels
● Back structure
● Tripod mount
Options
● Amplifier Holder
● Customized available
| ◆ R.F SPECIFICATIONS | C-Band | ||||
| RECEIVE | TRANSMIT | ||||
| 1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | |||
| 3.4-4.2 ★ | 5.85-6.725 ★ | ||||
| 2. Typical Gain(dBi) | 38.05 at 3.8GHz | 41.7 at 6.0GHz | |||
| 3. VSWR | 1.25:1 | 1.25:1 | |||
| 4. Beamwidth (-3dB) | 2.056° | 1.352° | |||
| 5. Antenna Noise Temperature(K) | 2Port Feed | ||||
| 10°Elevation | 38K | ||||
| 20°Elevation | 31K | ||||
| 40°Elevation | 27K | ||||
| 6. Typical G/T at 20°EL | 20.20dB/K (3.8GHz, 30K LNA) | ||||
| 7. Power Handling Capability | 5KW/Port | ||||
| 8. Feed Interface | CPR-229 | CPR-137 | |||
| 9. Feed Insertion Loss | 0.25dB | 0.2dB | |||
| 10. Tx to Rx Isolation | ≥85dB | ||||
| 11. Axial Ratio (dB) | 1.5dB | 1.0dB | |||
| 12. Cross Pol Isolation-On Axis | ≥35dB | ||||
| 13. Sidelobes | CCIR.580-6 | ||||
| ◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | ||||
| 1. Antenna Type | Dual-reflector | 1. Wind Loading, Operational (Without anchoring) | 25 mph | ||
| 2. Drive Type | Manual | 2. Wind Loading, Operational (With anchoring) | 30 mph gusting to 45 mph | ||
| 3. AZ Travel | 0 to 360° | 3. Wind Loading, Survival (anchored) | 80 mph in zenith (90° elevation) position | ||
| 4. EL Travel | 5° to 90° | 4. Ambient Temperature | -40°C to 60°C | ||
| 5. POL Travel | ±90° | 5. Rain | 100mm/h | ||
| 6. Reflector Material | Carbon Fiber | 6. Relative Humidity | 0 to 100% | ||
| 7. Reflector Segments | 11 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) | ||
| 8. Mount Type | Case support | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts | ||
| 9. Measures&weights | Case size(mm) | Net weight(kg) 100 50 |
Gross weight(kg) 100 80 |
||
| Mount case Panel case |
940*940*900 1160*660*800 |
||||
| Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
|||||
