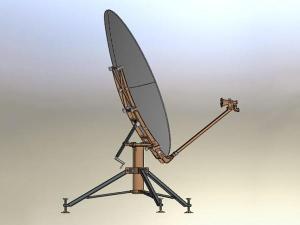

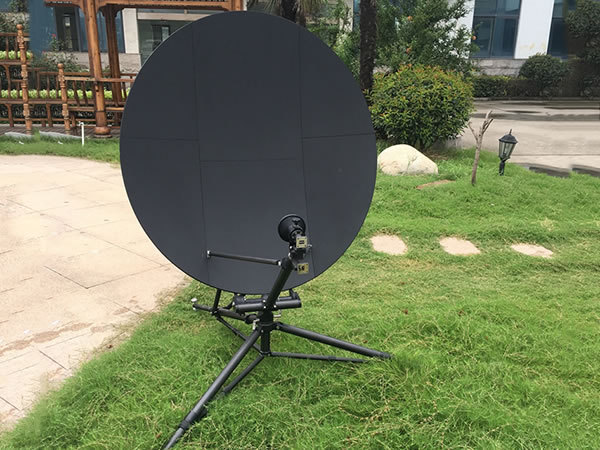

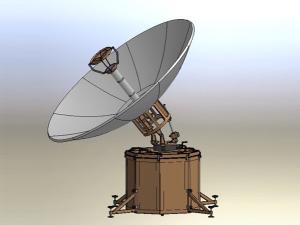

  4. 0.9m Ku-band, Ka-band Full Carbon Fiber Flyaway Antenna

0.9m Ku-band, Ka-band Full Carbon Fiber Flyaway Antenna

0.9m Ku-band, Ka-band Full Carbon Fiber Flyaway Antenna
Inquiry Form

Features of 0.9m Ku-band, Ka-band Full Carbon Fiber Flyaway Antenna
● 6 carbon fiber panels
● High gain and excellent sidelobe performance
● 5 Minutes Setup
● Easy & fast fine elevation adjustment
● Full carbon fiber tripod mount

Specification of 0.9m Ku-band, Ka-band Full Carbon Fiber Flyaway Antenna
◆ R.F SPECIFICATIONS Ku-band Ka-band
RECEIVE TRANSMIT RECEIVE TRANSMIT
1. Frequency (GHz) 12.25-12.75 14-14.5 19.6-21.2 29.4-31
10.95-12.75 ★ 13.75-14.5 ★ 17.8-20.2★ 28-30★
2. Typical Gain(dBi) 39.55 at 12.5GHz 40.34 at 14.25GHz 43.5at 20.4GHz 46.9at 30.2GHz
3. VSWR 1.25:1 1.25:1 1.3:1 1.3:1
4. Beamwidth (-3dB) 1.730° 1.580° 1.02° 0.67°
5. Antenna Noise Temperature(K)
10°Elevation 43K
20°Elevation 37K
40°Elevation 33K
6. Typical G/T at 20°EL 19.18dB/K (12.5GHz, 70K LNA) 18.7dB/K (20.4GHz, 170K LNA)
7. Power Handling Capability 1KW/Port
8. Feed Interface WR-75 WR-75 WR-42 WR-28
9. Feed Interface Loss 0.25dB 0.2dB 0.5dB 0.8dB
10. Tx to Rx Isolation ≥85dB ≥85dB
11. Axial Ratio (dB) ≤1.5:1 (On Axis)
12. Cross Pol Isolation
On Axis ≥35dB ≥35dB
13. Sidelobes CCIR.580-6 CCIR.580-6
◆ MECHANICAL SPECIFICATION ◆ ENVIRONMENTAL SPECIFICATION
1. Antenna Type Offset 1. Wind Loading,Operational ≦34mph(45km/h)
2. Drive Type Manual
3. AZ Travel 0 to 360° 2. Ambient Temperature -40°C to 60°C
4. EL Travel 10° to 90° 3. Rain 100mm/h
5. POL Travel ±90° 4. Relative Humidity 0 to 100%
6. Reflector Material Carbon Fiber 5. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2)
7. Reflector Segments 6
8. Mount Type Back-pack / Tripod 6. Ice 25mm on all surface or 13mm on all surface with
130km/h wind gusts
9. Surface Accuracy 0.3mm(R.M.S)
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
