- 0.9m Ku-band, S-band Aluminum Flwaway Antenna

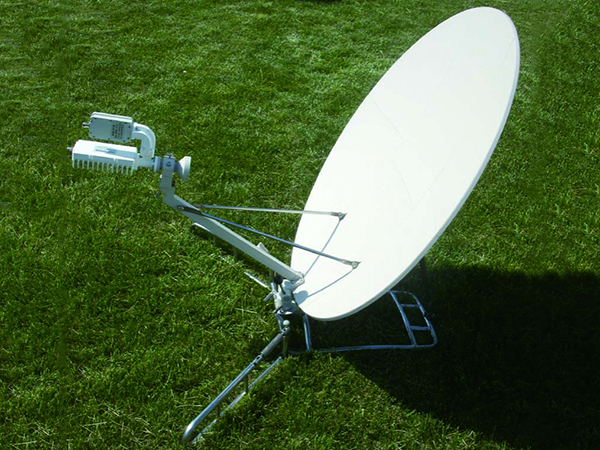

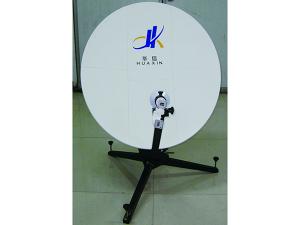

0.9m Ku-band, S-band Aluminum Flwaway Antenna
Features of 0.9m Ku-band, S-band Aluminum Flwaway Antenna
● 6 aluminum panels
● Nylon backpack case for back-pack type
● High gain and excellent sidelobe performance
● 5 Minutes Setup
● Easy & fast fine elevation adjustment
Approvals or Compliance
● ASIASAT
● APT
● CHINA SATCOM
● SINOSAT
● CHINA ORIENT
● INTELSAT
● EUTELSAT
Main parts
● Feed horn
● OMT & Filter
● Panels
● Back structure
● Back-pack or tripod mount
Options
● Air case
● Amplifier Holder
● Customized available
| ◆ R.F SPECIFICATIONS | Ku-band | S-band | ||
| RECEIVE | TRANSMIT | RECEIVE | TRANSMIT | |
| 1. Frequency (GHz) | 12.25-12.75 | 14-14.5 | 2.17-2.2 | 1.98-2.01 |
| 10.95-12.75 ★ | 13.75-14.5 ★ | |||
| 2. Typical Gain(dBi) | 39.55 at 12.5GHz | 40.55 at 14.25GHz | 20.5 | 21 |
| 3. VSWR | 1.25:1 | 1.25:1 | 1.4:1 | 1.4:1 |
| 4. Beamwidth (-3dB) | 1.730° | 1.580° | ||
| 5. Antenna Noise Temperature(K) | ||||
| 10°Elevation | 43K | |||
| 20°Elevation | 38K | |||
| 40°Elevation | 33K | |||
| 6. Typical G/T at 20°EL | 19.18dB/K (12.5GHz, 70K LNA) | |||
| 7. Power Handling Capability | 1KW/Port | 500W | ||
| 8. Feed Interface | WR-75 | WR-75 | SMA (Recommend SMA-K) | |
| 9. Feed Interface Loss | 0.25dB | 0.2dB | ||
| 10. Tx to Rx Isolation | ≥85dB | |||
| 11. Axial Ratio (dB) | ≤1.5:1 | |||
| 12. Cross Pol Isolation | ||||
| On Axis | ≥35dB | ＞21dB | ||
| 13. Sidelobes | CCIR.580-6 | |||
| ◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | |||
| 1. Antenna Type | Offset | 1. Wind Loading,Operational | ≦34mph(54km/h) | |
| 2. Drive Type | Manual | 2. Ambient Temperature | -40°C to 60°C | |
| 3. AZ Travel | 0 to 360° | 3. Rain | 100mm/h | |
| 4. EL Travel | 10° to 90° | 4. Relative Humidity | 0 to 100% | |
| 5. POL Travel | ±90° | 5. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) | |
| 6. Reflector Material | Precision formed aluminum | 6. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
|
| 7. Reflector Segments | 6 | |||
| 8. Mount Type | Back-pack / Tripod | |||
| 9. Surface Accuracy | 0.3mm(R.M.S) | |||
| Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
||||
