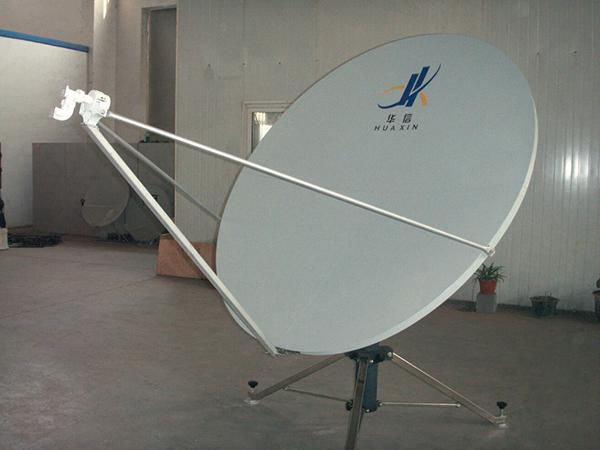

  4. 1.8m C-band, Ku-band Aluminum Flyaway Antenna

1.8m C-band, Ku-band Aluminum Flyaway Antenna

1.8m C-band, Ku-band Aluminum Flyaway Antenna
Inquiry Form

Features:
▪ 4 Aluminum panels
▪ High gain and excellent sidelobe performance
▪ 10 Minutes setup
▪ Easy and fast elevation adjustments
▪ Two cases

Specifications of 1.8m C-band, Ku-band Aluminum Flyaway Antenna
◆ R.F SPECIFICATIONS C-band Ku-band
RECEIVE TRANSMIT RECEIVE TRANSMIT
1. Frequency (GHz) 3.625-4.2 5.85-6.425 12.25-12.75 14-14.5
3.4-4.2 ★ 5.85-6.725 ★ 10.95-12.75 ★ 13.75-14.5 ★
2. Typical Gain(dBi) 35.55 at 3.8GHz 39.2 at 6GHz 45.57 at 12.5GHz 46.36 at 14.25GHz
3. VSWR 1.25:1 1.25:1 1.25:1 1.25:1
4. Beamwidth (-3dB) 2.742° 1.802° 0.865° 0.790°
5. Antenna Noise Temperature(K) 2Port Feed 2Port Feed
10°Elevation 38K 43K
6. Typical G/T at 20°EL 17.70dB/K(3.8GHz, 30K LNA) 25.24dB/K(12.5GHz, 70K LNA)
7. Power Handling Capability 5KW/Port 1KW/Port
8. Feed Interface CPR-229 CPR-137 WR-75 WR-75
9. Feed Interface Loss 0.2dB 0.15dB 0.25dB 0.25dB
10. Rx to Tx Isolation ≥85dB ≥85dB
11. Axial Ratio (dB) 1.5dB 1.0dB
12. Cross Pol Isolation
On Axis ≥35dB ≥35dB
13. Sidelobes CCIR.580-6 CCIR.580-6
◆ MECHANICAL SPECIFICATION ◆ ENVIRONMENTAL SPECIFICATION
1. Antenna Type Offset 1. Wind Loading,Operational ≦34mph(45km/h)
2. Drive Type Manual
3. AZ Travel 0 to 360° 2. Ambient Temperature -40°C to 60°C
4. EL Travel 10° to 90° 3. Rain 100mm/h
5. POL Travel ±90° 4. Relative Humidity 0 to 100%
6. Reflector Material Precision formed aluminum 5. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2)
7. Reflector Segments 4 6. Ice 25mm on all surface or 13mm on all surface with
130km/h wind gusts
8. Mount Type Tripod
9. Surface Accuracy 0.5mm(R.M.S)
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
