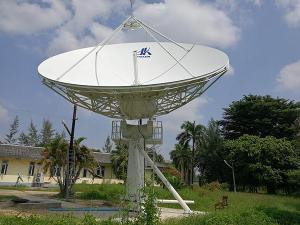

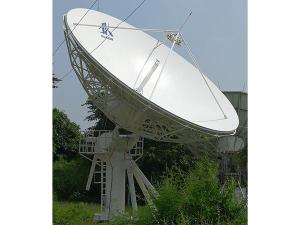

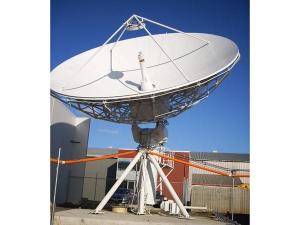

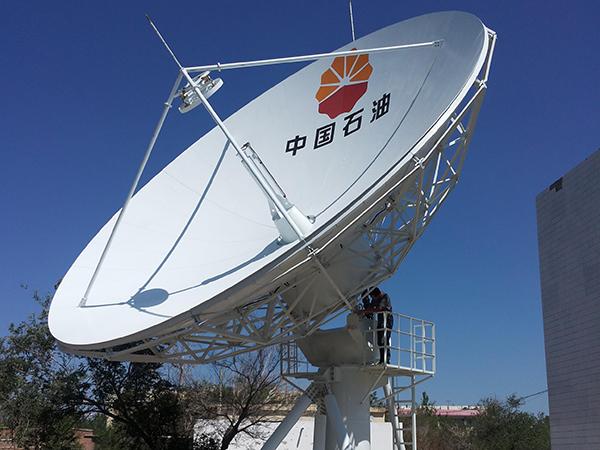

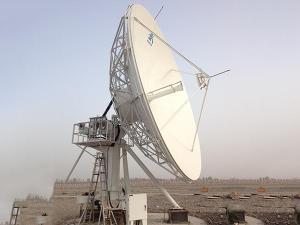

9.0m Special Ku-band, DBS-band RxTx Antenna

9.0m Special Ku-band, DBS-band RxTx Antenna
9.0m Special Ku-band, DBS-band RxTx Antenna 9.0m Special Ku-band, DBS-band RxTx Antenna 9.0m Special Ku-band, DBS-band RxTx Antenna 9.0m Special Ku-band, DBS-band RxTx Antenna 9.0m Special Ku-band, DBS-band RxTx Antenna
Inquiry Form

Features:
▪ Dual shape ring-focus design
▪ Aluminum major reflector & sub reflector with high precision
▪ High gain and excellent sidelobe performance
▪ Factory feed system and king post pedestal assembled to reduce installation time
▪ No field alignment requirement
▪ Well in anti-corrosion
▪ Excellent in stability

Specifications of 9.0m Special Ku-band, DBS-band RxTx Antenna
◆ R.F SPECIFICATIONS Special Ku-band DBS-band
RECEIVE TRANSMIT RECEIVE TRANSMIT
1. Frequency (GHz) 11.2-11.45 13-13.25 10.95-12.75 17.3-18.4
2. Typical Gain(dBi) 58.6 at 11.325GHz 59.9 at 13.125GHz 59 at 11.85GHz 62.6 at 17.85GHz
3. VSWR 1.3:1 1.3:1
4. Beamwidth (-3dB) 0.182° 0.157° 0.174° 0.115°
5. Antenna Noise Temperature(K) 1/2Port Feed 1/2Port Feed
10°Elevation 69K / 69K /
20°Elevation 61K / 61K /
40°Elevation 56K / 56K /
6. Typical G/T at 20°EL 39.20dB/K
(11.325GHz, 70K LNA) 		/ 39.40dB/K
(11.85GHz, 70K LNA) 		/
7. Power Handling Capability / ≥1KW / ≥1KW
8. Feed Interface WR-75 WR-75 WR-62
9. Feed Interface Loss ≤0.25dB ≤0.35dB ≤0.25dB ≤0.35dB
10. Rx to Tx Isolation ≥85dB（Including Rejection Filter）
11. Axial Ratio (dB) Linear Polarization（±90, adjustable）
12. Cross Pol Isolation
On Axis ≥35dB
13. Sidelobes CCIR.580-6
◆ MECHANICAL SPECIFICATION ◆ ENVIRONMENTAL SPECIFICATION
1. Antenna Type Ring-focus 1. Wind Loading,Operational (Maintain Precision) 60mph(97km/h)
2. Drive Type Motorized 2. Wind Loading,Operational (Decrease Precision) 65mph(105km/h)
3. AZ Travel ±95°(2 segments) 3. Wind Loading,Survival (Fixed Heavenward) 125mph(200km/h)
4. EL Travel 5° to 90° 4. Ambient Temperature -40°C to 60°C
5. POL Travel ±90° 5. Rain 100mm/h
6. Reflector Material Precision formed aluminum 6. Relative Humidity 0 to 100%
7. Reflector Segments 16 7. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2)
8. Mount Type King post pedestal 8. Ice 25mm on all surface or 13mm on all surface with
130km/h wind gusts
9. Surface Accuracy Ku: 0.5mm(R.M.S)
DBS: 0.3mm(R.M.S) 		9. Shock and vibration As encountered during shipment by commercial
air, sea or truck
10.Seismic (Survival) 0.3G's horizontal, 0.15G's vertical
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
