- 0.45m,0.6m Ku-band DTH Antenna

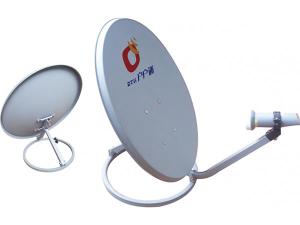

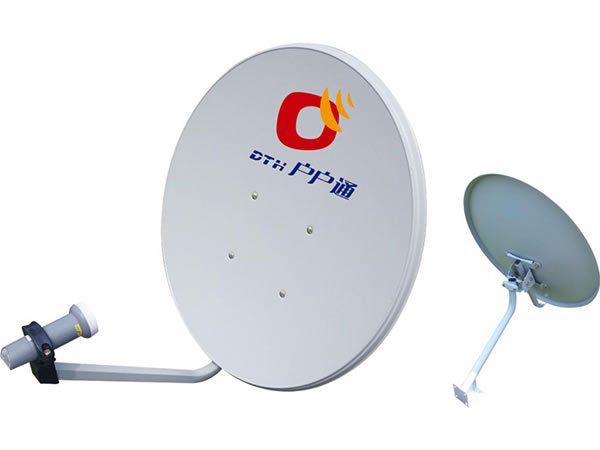

0.45m,0.6m Ku-band DTH Antenna
Features of 0.45m,0.6m Ku-band DTH Antenna
● Superior and stable electrical performance
● Concise, artistic and reliable structure
● Ground mount type and multifunction type, fit for various occasion's installation
● Particular surface treatment, good anti-corrosion ability, adapt to all kinds of environment,● long service life
● Easy and fast installation, few and low-cost maintenance
| ◆ R.F SPECIFICATIONS | 0.45m DTH Antenna | 0.6m DTH Antenna | ||
| Ku-RECEIVE | Ku-RECEIVE | |||
| 1. Frequency(GHz) | 10.95-12.75 | 10.95-12.75 | ||
| 2. Typical Gain(dBi) | ≥ 33.04 | ≥ 35.6 | ||
| 3. VSWR | ≤ 1.3 | ≤ 1.3 | ||
| 4. Beamwidth (-3dB) | 4.113 ° | 1.297 ° | ||
| 5.Noise Temperature(K) | ||||
| 10°Elevation | 43K | 44K | ||
| 6. Circular Polarization Cross Identification Rate(dB) | ≥ 20 | ≥ 20 | ||
| 7. First Sidelobe(dB) | ≤ -22 | ≤ -22 | ||
| 8. Axial Ratio | ≤ 1.35 | ≤ 1.35 | ||
| 9. Wide-angle Sidelobe Envelope (dBi) | 52-10lg(D/ λ )-25lg θ (2 °≤ θ≤ 20 ° ) | |||
| ◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | |||
| 1. Antenna Type | Offset | 1. Wind Loading, Operational (Maintain Precision) | 17m/s~20m/s | |
| 2. Drive Type | Manual | 2. Wind Loading, Operational (Decrease Precision) | 24m/s~28m/s | |
| 3. AZ Travel | 360° | 3. Wind Loading, Survival (Fixed Heavenward) | 32m/s~37m/s | |
| 4. EL Travel | 5° to 85° | 4.Ambient Temperature | -40 ℃ to 60 ℃ | |
| 5. Reflector Material | Steel | 5.Atmosphere | 80KPa~110KPa | |
| 6. Reflector Segments | 1 | |||
| 7. Mount Type | Ground mount/ Multifunction type | |||
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. | ||||
