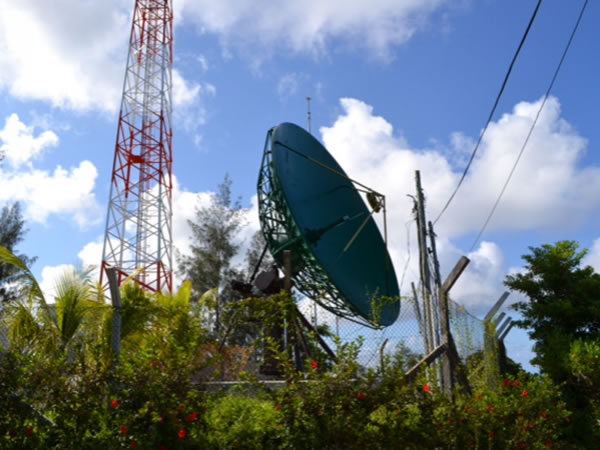

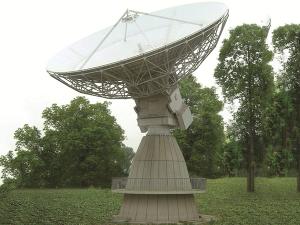

13.0m L&C Dual-band Rx Only Antenna
Features of 13.0m L&C Dual-band Rx Only Antenna
● Factory feed system assembled to reduce installation time
● Dual shape ring-focus design
● Aluminum major reflector & sub reflector with high precision
● No field alignment required
● Well in anti-corrosion
● Excellent in stability
| ◆ R.F SPECIFICATIONS | C-Band | L-Band | ||
| RECEIVE | RECEIVE | |||
| 1. Frequency(GHz) | 3.4-4.2 | 1.518-1.559 | ||
| 2. Typical Gain(dBi) | 51.6 at 3.8GHz | 43.0 at 1.5385GHz | ||
| 3. VSWR | 1.3:1 | 1.3:1 | ||
| 4. Beamwidth (-3dB) | 0.43° | 1.1° | ||
| 5. Antenna Noise Temperature(K) | ||||
| 10°Elevation | ≤ 44K | ≤ 50K | ||
| 6. Feed Interface | CPR-229 | N-Female | ||
| 7. Feed Insertion Loss | ≤ 0.3dB | ≤ 1dB | ||
| 8. Polarization | Dual linear Pol | LHCP | ||
| 9.Cross Pol Isolation | Cross Pol Isolation | Circular Pol axial ratio | ||
| On Axis | ≥35dB | ≤ 2dB | ||
| 10.Sidelobes | ≤ -14dB | ≤ -14dB | ||
| ◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | |||
| 1. Antenna Type | Dual-reflector | 1. Wind Loading, Operational (Maintain Precision) | Steady wind 20m/s,gust 27m/s | |
| 2. Drive Type | Motorized | 2. Wind Loading, Operational (Decrease Precision) | Steady wind 27m/s,gust 32m/s | |
| 3. AZ Travel | ± 90° | 3. Wind Loading, Survival (Fixed Heavenward) | 56m/s,antenna locked upwards | |
| 4. EL Travel | 0° to 90° | 4. Ambient Temperature | Outdoor -45 °C to 60°C Indoor 0°C to 40°C | |
| 5. POL Travel | ±90° | 5. Rain | 100mm/h | |
| 6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | Outdoor 0 to 100% Indoor 10 to 95% | |
| 7. Reflector Segments | 54 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2 ) | |
| 8. Mount Type | Kingpost pedestal | 8. Ice | Above 25mm | |
| 10.Seismic (Survival) | 0.3G's horizontal, 0.15G's vertical | |||
|
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
||||
