- 1.2m Ku-band Carbon Fiber Reflector

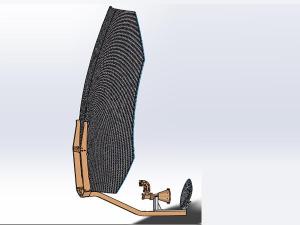

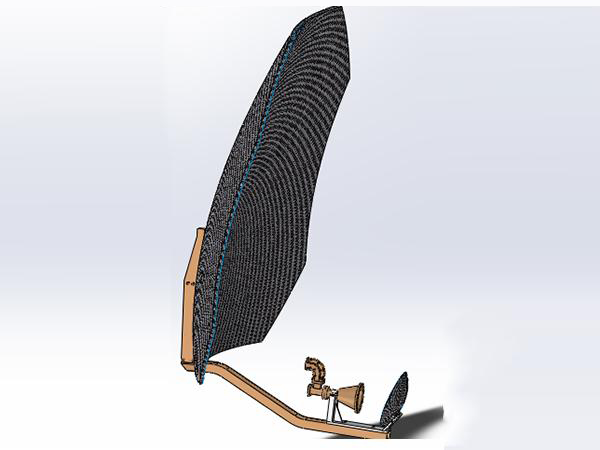

1.2m Ku-band Carbon Fiber Reflector
Features:
▪ High gain and excellent sidelobe performance
▪ Factory feed system and king post pedestal assembled to reduce installation time
▪ No field alignment requirement
▪ Well in anti-corrosion
▪ Excellent in stability
| ◆ R.F SPECIFICATIONS | Ku-band | |
| RECEIVE | TRANSMIT | |
| 1. Frequency (GHz) | 12.25-12.75 | 14-14.5 |
| 10.95-12.75 ★ | 13.75-14.5 ★ | |
| 2. Typical Gain(dBi) | 40.8 at 11.85GHz / 42 at 12.5GHz | 42.8 at 14.125GHz / 43 at 14.25GHz |
| 3. VSWR | 1.25:1 | 1.25:1 |
| 4. Beamwidth (-3dB) | 1.28° / 1.22° | 1.11° / 1.08° |
| 5. Antenna Noise Temperature(K) | ||
| 10°Elevation | 44K | |
| 20°Elevation | 37K | |
| 40°Elevation | 32K | |
| 6. Typical G/T at 20°EL | 20.5dB/K (12.5GHz, 80K LNA) | |
| 7. Power Handling Capability | / | 1KW |
| 8. Feed Interface | WR75 | WR75 |
| 9. Feed Interface Loss | 0.25dB | 0.3dB |
| 10. Rx to Tx Isolation | ≥85dB | |
| 11. Cross Pol Isolation | ||
| On Axis | ≥35dB | |
| 12. Sidelobes | CCIR.580-6 | |
| Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
||
