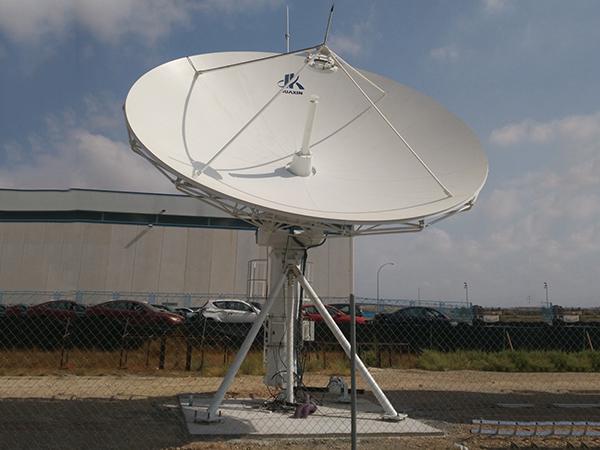

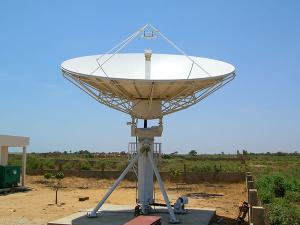

Features of 7.3m C-band, Ku-band RxTx Antenna
● Dual shape ring-focus design
● Aluminum major reflector & sub reflector with high precision
● High gain and excellent sidelobe performance
● Factory feed system and king post pedestal assembled to reduce installation time
● No field alignment required
● Well in anti-corrosion
Approvals or Compliance
● ASIASAT
● APT
● CHINA SATCOM
● SINOSAT
● INTELSAT
● EUTELSAT
Main parts
● Feed horn
● OMT & Filter
● Panels
● Radial beam
● Hub
● 2-axis motorized king post pedestal
● Foundation kit
Options
● Circular polarization/ dual linear polarization/ dual circular polarization
● Amplifier Holder
● POL motorized
● Controller & Beacon receiver
● Dehydrator
● Waveguide switch
● Lightning rod
● Anti-icing system

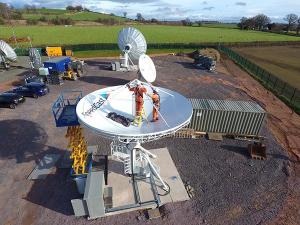

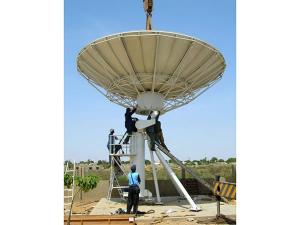

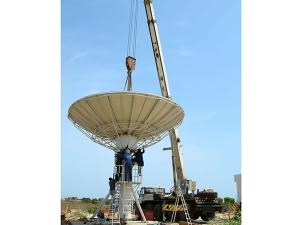

● Site Installation, commissioning and network access support
● Anti-salt treatment for steel structure
● Customized available
◆ R.F SPECIFICATIONS | C-Band | Ku-Band | ||
RECEIVE | TRANSMIT | RECEIVE | TRANSMIT | |
1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 |
3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ | |
2. Typical Gain(dBi) | 47.71 at 3.8GHz | 51.36 at 6.0GHz | 57.73 at 12.5GHz | 58.52 at14.25GHz |
3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
4. Beamwidth (-3dB) | 0.676° | 0.444° | 0.213° | 0.195° |
5. Antenna Noise Temperature(K) | 2/4Port Feed | 2/4Port Feed | ||
20°Elevation | 27K/31K | 39K/45K | ||
40°Elevation | 24K/28K | 34K/40K | ||
6. Typical G/T at 20°EL | 30.15/29.86dB/K (3.8GHz, 30K LNA) | 37.36/37.13dB/K (12.5GHz, 70K LNA) | ||
7. Power Handling Capability | 5KW/Port | 1KW/Port | ||
8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 |
9. Feed Insertion Loss | 0.25/0.3dB | 0.2/0.25dB | 0.3/0.4dB | 0.25/0.35dB |
10. Tx to Rx Isolation | ≥85dB | ≥85dB | ||
11. Axial Ratio (dB) | 1.5/0.5dB | 1.0/0.5dB | ||
12. Cross Pol Isolation | ||||
On Axis | ≥35dB | ≥35dB | ||
13. Sidelobes | CCIR.580-6 | CCIR.580-6 | ||
◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | |||
1. Antenna Type | Ring-focus | 1. Wind Loading, Operational (Maintain Precision) | 60mph(97km/h) | |
2. Drive Type | Motorized | 2. Wind Loading, Operational (Decrease Precision) | 65mph(105km/h) | |
3. AZ Travel | ±90°(3 segments) | 3. Wind Loading, Survival (Fixed Heavenward) | 125mph(200km/h) | |
4. EL Travel | 5° to 90° | 4. Ambient Temperature | -40°C to 60°C | |
5. POL Travel | ±90° | 5. Rain | 100mm/h | |
6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | 0 to 100% | |
7. Reflector Segments | 16 | 7. Solar Radiation | 360 BTU/h/ft 2 (1000Kcal/h/m 2 ) | |
8. Mount Type | King post pedestal | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts | |
9. Surface Accuracy | 0.5mm(R.M.S) | 9. Shock and Vibration | As encountered during shipment by commercial air, sea or truck | |
10.Seismic (Survival) | 0.3G's horizontal, 0.15G's vertical | |||
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
