- 2.2m S-band Rx Only Antenna

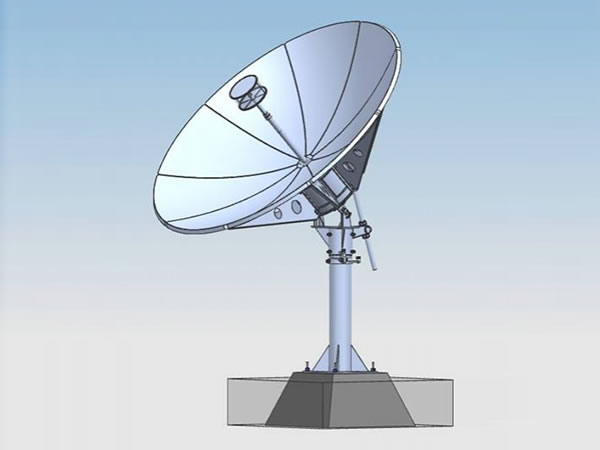

2.2m S-band Rx Only Antenna
Features of 2.2m S-band Rx Only Antenna
● Aluminum reflector with high precision
● Fashionable design, easy installation and adjustment，no field alignment required
● Factory feed system and king post pedestal assembled to reduce installation time
● Excellent in stability
● Well in anti-corrosion
| ◆ R.F SPECIFICATIONS | S-Band | |||
| RECEIVE | ||||
| 1. Frequency(GHz) | 2.2-2.6 | |||
| 2. Typical Gain(dBi) | ≥ 31 | |||
| 3. VSWR | ≤ 1.8:1 | |||
| 4. Half Power Beam Width | ≤ 7 ° | |||
| 5. Feed Interface | N | |||
| 6. Axis Ratio(dB) | ≤ 2 | |||
| 7. Cross Pol Isolation | 19dB | |||
| ◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | |||
| 1. Antenna Type | Prime-focus | 1. Wind Loading, Operational (Maintain Precision) | 45mph(72km/h) | |
| 2. Drive Type | Manual | 2. Wind Loading, Operational (Decrease Precision) | 60mph(97km/h) | |
| 3. AZ Travel | ± 90° | 3. Wind Loading, Survival (Fixed Heavenward) | 125mph(200km/h) | |
| 4. EL Travel | 5° to 90° | 4. Ambient Temperature | -40°C to 60°C | |
| 5. POL Travel | ±90° | 5. Rain | 100mm/h | |
| 6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | 0 to 100% | |
| 7. Reflector Segments | 9 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2 ) | |
| 8. Mount Type | Pole mount | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts | |
| 9. Shock and Vibration | As encountered during shipment by commercial air, sea or truck | |||
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. | ||||
