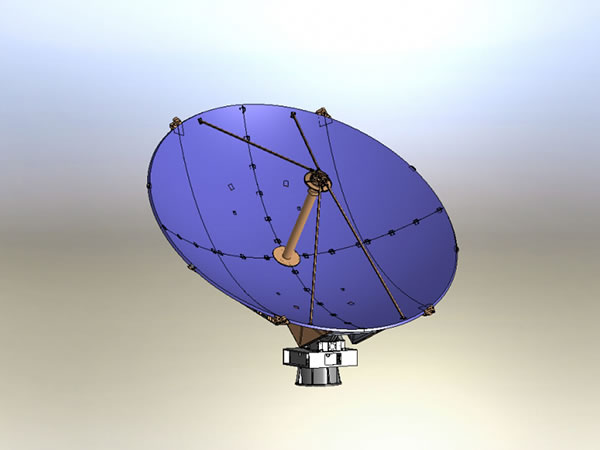

4.5m Foldable Carbon Fiber Vehicle-mounted Antenna
Features of 4.5m Foldable Carbon Fiber Vehicle-mounted Antenna
● Dual shape ring-focus design
● Carbon fiber major reflector with high precision
● High gain and excellent sidelobe performance
● Well in anti-corrosion
● Excellent in stability
| ◆ R.F SPECIFICATIONS | C-Band | Ku-Band | ||
| RECEIVE | TRANSMIT | RECEIVE | TRANSMIT | |
| 1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 |
| 3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ | |
| 2. Typical Gain(dBi) | 43.51 at 3.8GHz | 47.16 at 6.0GHz | 53.53 at 12.5GHz | 54.32 at14.25GHz |
| 3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| 4. Beamwidth (-3dB) | 1.097° | 0.721° | 0.346° | 0.316° |
| 5. Antenna Noise Temperature(K) | 2 Port Feed | 2 Port Feed | ||
| 10°Elevation | 36K | 45K | ||
| 20°Elevation | 29K | 40K | ||
| 40°Elevation | 24K | 36K | ||
| 6. Typical G/T at 20°EL | 25.80dB/K (3.8GHz, 30K LNA) | 33.12dB/K (12.5GHz, 70K LNA) | ||
| 7. Power Handling Capability | 5KW/Port | 1KW/Port | ||
| 8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 |
| 9. Feed Insertion Loss | 0.25dB | 0.2dB | 0.3dB | 0.25dB |
| 10. Tx to Rx Isolation | ≥85dB | ≥85dB | ||
| 11. Axial Ratio (dB) | 1.5dB | 1.0dB | ||
| 12. Cross Pol Isolation | ||||
| On Axis | ≥35dB | ≥35dB | ||
| 13. Sidelobes | CCIR.580-6 | CCIR.580-6 | ||
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. | ||||
