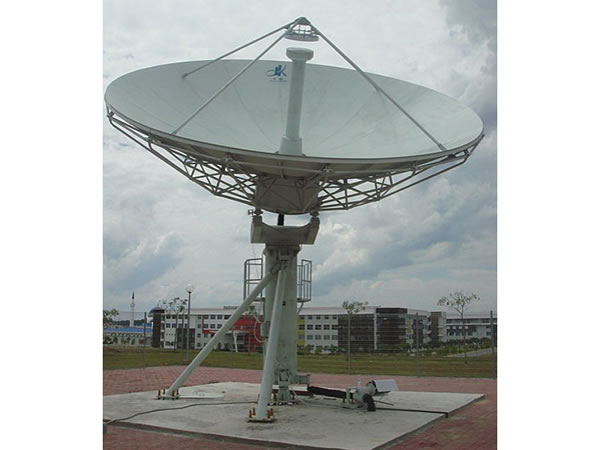

7.3m L-band Rx Only Antenna

Features of 7.3m L-band Rx Only Antenna
● Dual shape ring-focus design
● Well in anti-corrosion
● Aluminum major reflector & sub reflector with high precision
● Fashionable design, easy installation and adjustment
● Factory feed system and king post pedestal assembled to reduce installation time
● No field alignment required
Ÿ● Excellent in stability

Specification of 7.3m L-band Rx Only Antenna
1. Frequency(GHz) 1.1-1.5Ghz
2. Typical Gain(dBi) 38.08 at 1.3GHz
3. VSWR 1.3:1
4. Beamwidth (-3dB) 2.05°
5. Antenna Noise Temperature(K) 1Port Feed
20°Elevation 43K
6. Feed Interface N type
7. Feed Insertion Loss ≥ 0.25dB
8. Cross Pol Isolation
On Axis ≥30dB
12. Sidelobes CCIR.580-6
1. Antenna Type Dual-reflector 1. Wind Loading, Operational (Maintain Precision) 60mph(97km/h)
2. Drive Type Motorized 2. Wind Loading, Operational (Decrease Precision) 65mph(105km/h)
3. AZ Travel ±90°(3 segments) 3. Wind Loading, Survival (Fixed Heavenward) 125mph(200km/h)
4. EL Travel 5° to 90° 4. Ambient Temperature -40°C to 60°C
5. POL Travel ±90° 5. Rain 100mm/h
6. Reflector Material Precision formed aluminum 6. Relative Humidity 0 to 100%
7. Reflector Segments 16 7. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2 )
8. Mount Type King post pedestal 8. Ice 25mm on all surface or 13mm on all surface with 130km/h wind gusts
9. Shock and Vibration As encountered during shipment by commercial air, sea or truck
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
