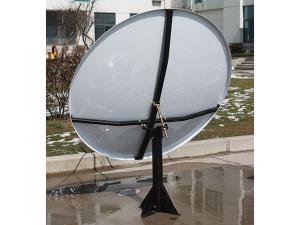

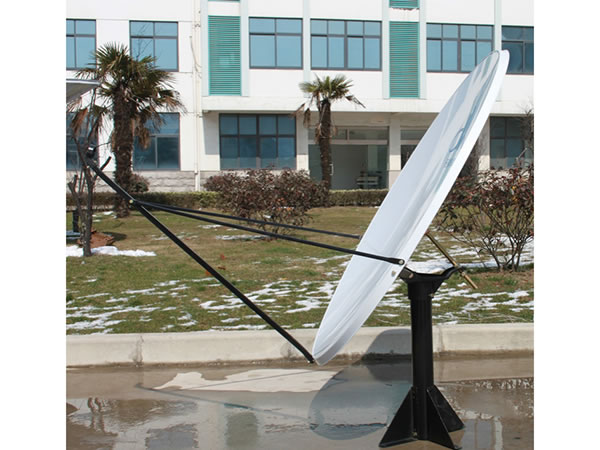

1.2m C-band, Ku-band Offest Rx Only Antenna

Features of 1.2m C-band, Ku-band Offest Rx Only Antenna
● Aluminum reflector with high precision
● Fashionable design, easy installation and adjustment
● Factory king post pedestal assembled to reduce installation time
● Excellent in stability

Main parts: Panel, Back structure, Pole mount, Foundation kit

● Dual linear polarization / dual circular polarization
● Non-penetrating mount
● Special anti-corrosion treatment for steel structure
● Customized available

Specification of 1.2m C-band, Ku-band Offest Rx Only Antenna
1. Frequency(GHz) 3.625-4.2 12.25-12.75
3.4-4.2 ★ 10.95-12.75 ★
2. Typical Gain(dBi) 32.03 at 3.8GHz 42.05 at 12.5GHz
3. VSWR 1.3:1 1.3:1
4. Beamwidth (-3dB) 4.113 ° 1.297 °
5. Antenna Noise Temperature(K) 1/2Port Feed 1/2Port Feed
10°Elevation 39K 44K
20°Elevation 34K 39K
40°Elevation 30K 35K
6. Typical G/T at 20°EL 13.97dB/K(3.8GHz, 30K LNA) 21.68dB/K(12.5GHz, 70K LNA)
7. Feed Interface CPR-229 WR-75
8. Feed Insertion Loss 0.15dB 0.2dB
9. Cross Pol Isolation
On Axis ≥ 30dB ≥ 30dB
10. Sidelobes CCIR.580-6 CCIR.580-6
1. Antenna Type Offset 1. Wind Loading, Operational (Maintain Precision) 45mph(72km/h)
2. Drive Type Manual 2. Wind Loading, Operational (Decrease Precision) 60mph(97km/h)
3. AZ Travel 0 to 360° 3. Wind Loading, Survival (Fixed Heavenward) 125mph(200km/h)
4. EL Travel 10° to 90° 4. Ambient Temperature -40°C to 60°C
5. POL Travel ±90° 5. Rain 100mm/h
6. Reflector Material Precision formed aluminum 6. Relative Humidity 0 to 100%
7. Reflector Segments 1 7. Solar Radiation 360 BTU/h/ft2(1000Kcal/h/m2)
8. Mount Type Pole mount 8. Ice 25mm on all surface or 13mm on all surface with 130km/h wind gusts
9. Shock and Vibration As encountered during shipment by commercial air, sea or truck
    10.Seismic (Survival) 0.3G's horizontal, 0.15G's vertical
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
