  5. 6.2m Foldable Vehicle-mounted Antenna

6.2m Foldable Vehicle-mounted Antenna

6.2m Foldable Vehicle-mounted Antenna
6.2m Foldable Vehicle-mounted Antenna 6.2m Foldable Vehicle-mounted Antenna
Inquiry Form

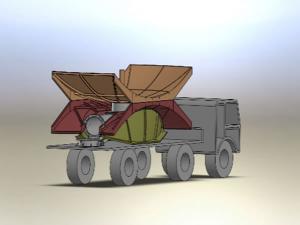

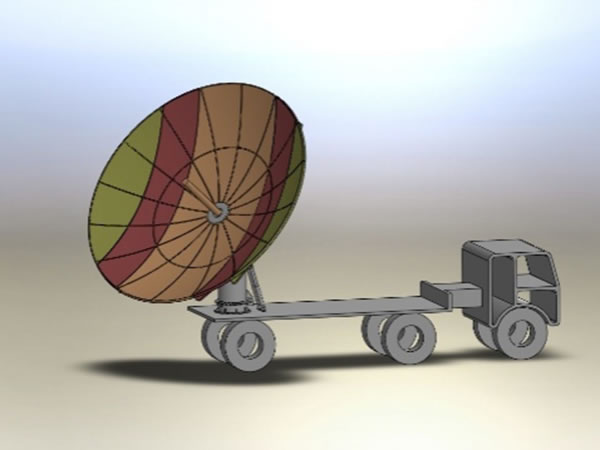

Features of 6.2m Foldable Vehicle-mounted Antenna ● Dual shape ring-focus design
● High gain and excellent sidelobe performance
● Well in anti-corrosion
● Excellent in stability Specification of 6.2m Foldable Vehicle-mounted Antenna
◆ R.F Specifications C-Band Ku-Band
Receive Transmit Receive Transmit
1. Frequency(GHz) 3.625-4.2 5.85-6.425 12.25-12.75 14-14.5
3.4-4.2 ★ 5.85-6.725 ★ 10.95-12.75 ★ 13.75-14.5 ★
2. Typical Gain(dBi) 46.30 at 3.8GHz 49.94 at 6.0GHz 56.32 at 12.5GHz 57.11 at14.25GHz
3. VSWR 1.25:1 1.25:1 1.25:1 1.25:1
4. Beamwidth (-3dB) 0.796° 0.523° 0.251° 0.229°
5. Antenna Noise Temperature(K) 2/4Port Feed 2/4Port Feed
10°Elevation 34K/39K 44K/52K
20°Elevation 27K/32K 39K/47K
40°Elevation 24K/29K 35K/43K
6. Typical G/T at 20°EL 28.74/28.37dB/K (3.8GHz, 30K LNA) 35.94/35.63dB/K (12.5GHz, 70K LNA)
7. Power Handling Capability 5KW/Port 1KW/Port
8. Feed Interface CPR-229 CPR-137 WR-75 WR-75
9. Feed Insertion Loss 0.25/0.3dB 0.2/0.25dB 0.3/0.4dB 0.25/0.35dB
10. Tx to Rx Isolation ≥85dB ≥85dB
11. Axial Ratio (dB) 1.5/0.5dB 1.0/0.5dB
12. Cross Pol Isolation
On Axis ≥35dB ≥35dB
13. Sidelobes CCIR.580-6 CCIR.580-6
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
