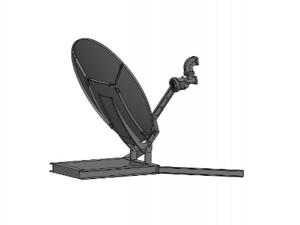

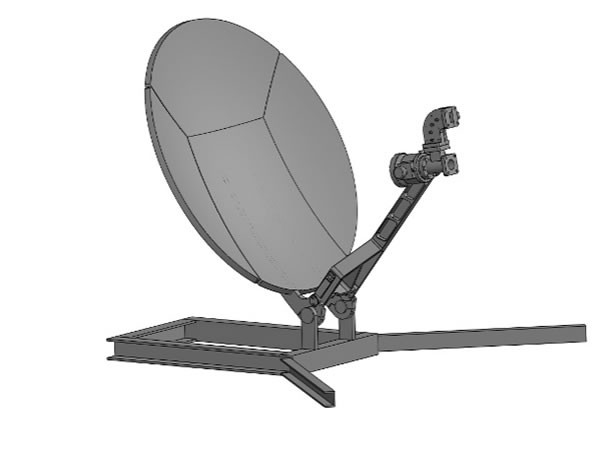

0.5m Aluminum Flyaway Antenna

0.5m Aluminum Flyaway Antenna
0.5m Aluminum Flyaway Antenna 0.5m Aluminum Flyaway Antenna
Inquiry Form

Features of 0.5m Aluminum Flyaway Antenna
● 4 aluminum panels
● High gain and excellent sidelobe performance
● 5 Minutes Setup
● Easy & fast fine elevation adjustment

Specification of 0.5m Aluminum Flyaway Antenna
◆ R.F Specifications Ku-Band
Receive Transmit
1. Frequency(GHz) 12.25-12.75 14-14.5
10.95-12.75 ★ 13.75-14.5 ★
2. Typical Gain(dBi) 34.45 at 12.5GHz 35.24 at 14.25GHz
3. VSWR 1.25:1 1.25:1
4. Beamwidth (-3dB) 3.113° 2.842°
5 ． Typical G/T at 20°EL 13.92dB/K (12.5GHz, 70K LNA)
6. Power Handling Capability 1KW/Port
7. Feed Interface WR-75 WR-75
8. Feed Insertion Loss 0.25dB 0.2dB
9. Tx to Rx Isolation ≥85dB
10. Cross Pol Isolation
On Axis ≥35dB
11. Sidelobes CCIR.580-6
◆ Mechanical Specification ◆ Environmental Specification
1. Antenna Type Offset 1. Wind Loading, Operational ≤ 34mph(54km/h)
2. Drive Type Manual
3. AZ Travel 0 to 360° 2. Ambient Temperature -40°C to 60°C
4. EL Travel 10° to 90° 3. Rain 100mm/h
5. POL Travel ±90° 4. Relative Humidity 0 to 100%
6. Reflector Material Precision formed aluminum 5. Solar Radiation 360 BTU/h/ft 2 (1000Kcal/h/m2 )
7. Reflector Segments 4 6. Ice 25mm on all surface or 13mm on all surface with 130km/h wind gusts
8. Mount Type Back-pack
9. Surface Accuracy 0.5mm(R.M.S)
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
