We are able to provide various duplexers! Please contact us and tell us your needs!

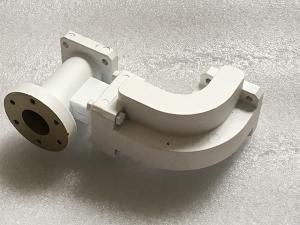

Standard Ku-band Linear-POL 2-port Duplexer (High-performance)

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 14.00-14.5GHz 12.25-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.25 ≤ 1.25
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.3dB ≤ 0.35dB
4 ．Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White

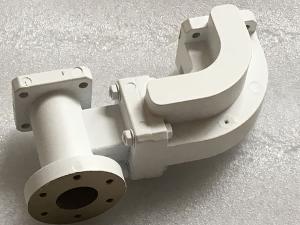

Standard Ku-band Linear-POL 2-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 14.00-14.5GHz 12.25-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.3 ≤ 1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.4dB ≤ 0.4dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White

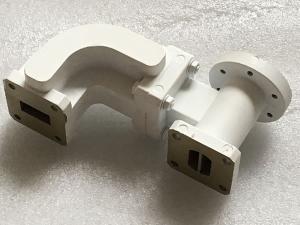

Extended Ku-band Linear-POL 2-port Duplexer (High-performance 1)

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 13.75-14.5GHz 10.95-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.25 ≤ 1.25
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.3dB ≤ 0.35dB
4. Cross-Polarization Isolation ≥ 35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥ 85dB ≥ 30dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White
Extended Ku-band Linear-POL 2-port Duplexer 1

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 13.75-14.5GHz 10.95-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.3 ≤ 1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.4dB ≤ 0.4dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White
Extended Ku-band Linear-POL 2-port Duplexer (High-performance 2)

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 13.75-14.5GHz 10.7-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.25 ≤ 1.25
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.3dB ≤ 0.35dB
4. Cross-Polarization Isolation ≥ 35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥ 85dB ≥ 30dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White
Extended Ku-band Linear-POL 2-port Duplexer 2

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 13.75-14.5GHz 10.7-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.3 ≤ 1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.4dB ≤ 0.4dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White

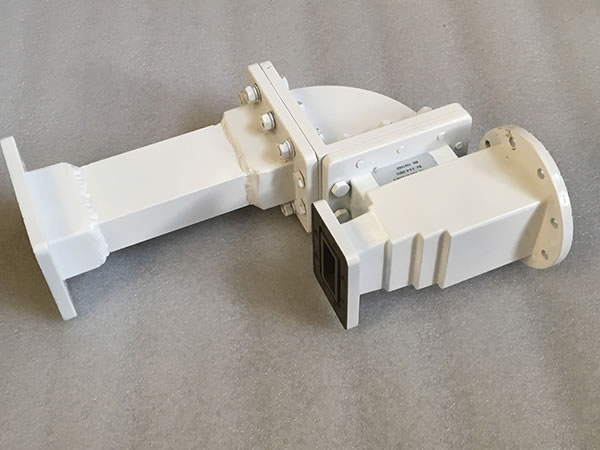

Standard C-band Linear-POL 2-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 5.85-6.425GHz 3.625-4.2GHz
2. Transmitting VSWR Receiving VSWR ≤1.3 ≤1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤0.2dB ≤0.3dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 5 kw
7. Surface Treatment Matt White

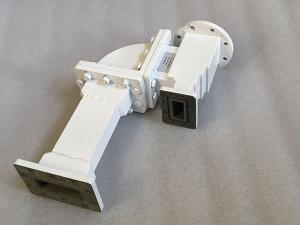

Extended C-band Linear-POL 2-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 5.85-6.725GHz 3.4-4.2GHz
2. Transmitting VSWR Receiving VSWR ≤1.3 ≤1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤0.2 dB ≤0.35 dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 5 kw
7. Surface Treatment Matt White

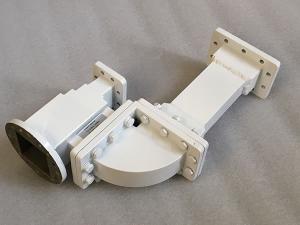

Standard C-band Circular-POL 2-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 5.85-6.425GHz 3.625-4.2GHz
2. Transmitting VSWR Receiving VSWR ≤1.25 ≤1.25
3. Transmitting Insertion Loss Receiving Insertion Loss ≤0.3 dB ≤0.4 dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Axial ratio Rx 1.12（ 1dB ）
Tx 1.09 (0.75dB)
7. Power X Handling Capability 5 kw
8. Surface Treatment Matt White
Extended C-band Circular-POL 2-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 5.85-6.725GHz 3.4-4.2GHz
2. Transmitting VSWR Receiving VSWR ≤1.25 ≤1.25
3. Transmitting Insertion Loss Receiving Insertion Loss ≤0.3 dB ≤0.4 dB
4. Cross-Polarization Isolation ≥35dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Axial ratio Rx 1.15 （1.12dB ）
Tx 1.12 (1dB)
7. Power X Handling Capability 5 kw
8. Surface Treatment Matt White
Special Ku-band Linear-POL 2-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 13-14.5GHz 10.95-12.75GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.3 ≤ 1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.4dB ≤ 0.4dB
4. Cross-Polarization Isolation ≥33dB
5. Port Isotaltion Tx/Rx Isolation ≥81dB
6. Power X Handling Capability 1 kw
7. Surface Treatment Matt White
Extended C-band Linear-POL 3-port Duplexer

Features
High isolation, low insertion losses and low VSWR.

1. Transmitting Frequency Receiving Frequency 5.85-6.725GHz 3.4-4.2GHz
2. Transmitting VSWR Receiving VSWR ≤ 1.25 ≤ 1.3
3. Transmitting Insertion Loss Receiving Insertion Loss ≤ 0.3dB ≤ 0.3dB
4. Cross-Polarization Isolation ≥30dB
5. Port Isotaltion Tx/Rx Isolation Rx/Tx Isolation ≥85dB ≥30dB
6. Power X Handling Capability 5 kw
7. Surface Treatment Matt White
