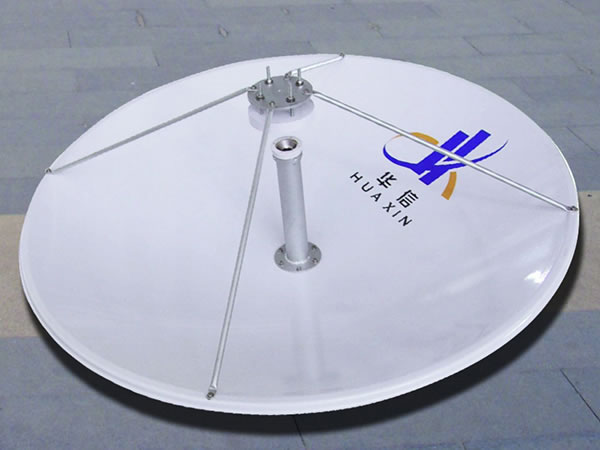

0.88m,1.0m Ku-band VSAT Antenna Reflector

0.88m,1.0m Ku-band VSAT Antenna Reflector

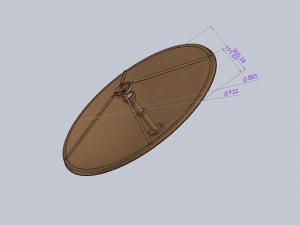

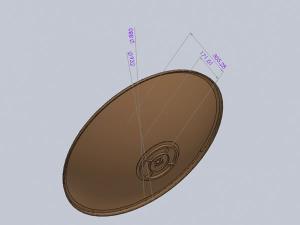

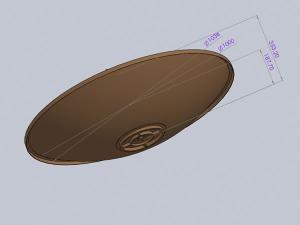

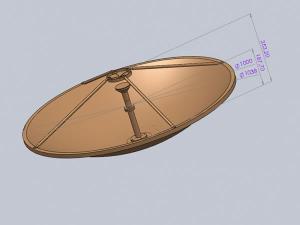

0.88m,1.0m Ku-band VSAT Antenna Reflector 0.88m,1.0m Ku-band VSAT Antenna Reflector 0.88m,1.0m Ku-band VSAT Antenna Reflector 0.88m,1.0m Ku-band VSAT Antenna Reflector 0.88m,1.0m Ku-band VSAT Antenna Reflector
Inquiry Form

Features of 0.88m,1.0m Ku-band VSAT Antenna Reflector
● Aluminum major reflector & sub reflector with high precision
● Factory feed system assembled to reduce installation time
● Excellent in stability
● Dual shape ring-focus design
● High gain and excellent sidelobe performance

Main parts
Feed horn, OMT & Filter, Panel, Connecting interface

Options
● POL motorized
Ÿ● Customized available

Approvals or Compliance
● CHINA SATCOM
● ASIASAT
● SINOSAT
Ÿ● APT

Specification of 0.88m,1.0m Ku-band VSAT Antenna Reflector
◆ R.F SPECIFICATIONS 0.88m VSAT Antenna Reflector 1.0m VSAT Antenna Reflector
Ku-RECEIVE Ku-TRANSMIT Ku-RECEIVE Ku-TRANSMIT
1. Frequency (GHz) 12.25-12.75 14-14.5 12.25-12.75 14-14.5
10.95-12.75 ★ 13.75-14.5 ★ 10.95-12.75 ★ 13.75-14.5 ★
2. Typical Gain (dBi) 39.36 at 12.5GHz 40.15 at 14.25GHz 40.47 at 12.5GHz 41.26 at 14.25GHz
3. VSWR 1.25:1 1.25:1
4. Beamwidth (-3dB) 1.769° 1.615° 1.557° 1.422°
5. Antenna Noise Temperature (K) 2Port Feed 2Port Feed
10° Elevation 46K 45K
20° Elevation 40K 39K
40° Elevation 36K 35K
6. Typical G/T at 20°EL 18.94dB/K (12.5GHz, 70K LNA) 20.9dB/K (12.5GHz, 70K LNA)
7. Power Handling Capability 1KW/Port 1KW/Port
8. Feed Interface WR-75
9. Feed Insertion Loss 0.25dB 0.2dB 0.25dB 0.2dB
10. Rx to Tx Isolation ≥85dB
11. Cross Pol Isolation
On Axis ≥35dB ≥35dB
12. Sidelobes CCIR.580-6 CCIR.580-6
◆ MECHANICAL SPECIFICATION ◆ ENVIRONMENTAL SPECIFICATION
1. Antenna Type Ring-focus 1. Wind Loading,Operational (Maintain Precision) /
2. Drive Type Manual/Motorized 2. Wind Loading,Operational (Decrease Precision) /
3. AZ Travel / 3. Wind Loading,Operational (Decrease Precision) /
4. EL Travel / 4. Ambient Temperature -40°C to 60°C
5. POL Travel ±90° 5. Rain 100mm/h
6. Reflector Material Precision formed aluminum 6. Relative Humidity 0 to 100%
7. Reflector Segments 1 7. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2)
8. Mount Type Connecting interface 8. Ice 25mm on all surface or 13mm on all surface with 130km/h wind gusts
9. Surface Accuracy 0.5mm(R.M.S) 9. Shock and Vibration As encountered during shipment by commercial air, sea or truck
10. Seismic (Survival) 0.3G's horizontal, 0.15G's vertical
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
