Dehydrator

Intelligent Pressurization Dehydrator is an important support equipment in communication systems engineering, mainly used in microwave stations, radar stations, satellite earth stations, radio and television transmitting station feed system.

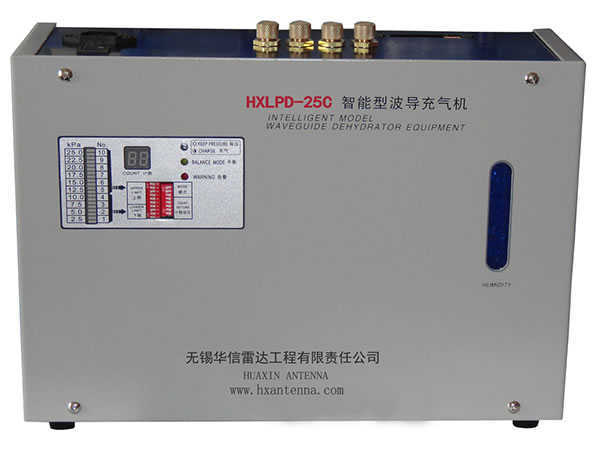

Model: HXLPD-25C
Easy operation, reliable performance, reliable quality

Specifications
Output Pressure 2.5 kPa to 25kPa
Output Capacity 13 liters/minute
Power Source 220VAC±20%,50Hz/60Hz
Power Consumption At 220VAC/50Hz less than 30 watts
Sound Lever Less than 40dBA@1 meter
Out Dew Point -30 ℃ or better
Operating Temperature Range -20 ℃ to +60℃
Relative Humidity 90% at ambient temperature of +23℃
Desiccant High quality silica gel
Storage Temperature -30 ℃ to +70℃
Air Connection for Hose 4mm (1/6") inside diameter
Alarms Excess run alarm, at Work on for 30 minutes
Mounting Wall-mounting
Dimensions(about: H×W×D) 370mm ×278mm×120mm
Weight ～ 8kg

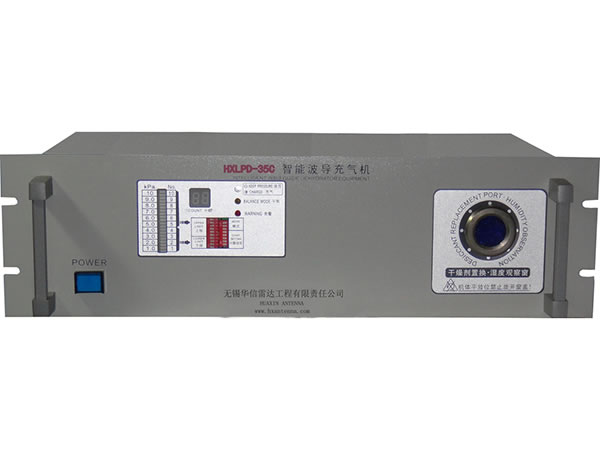

Model: HXLPD-35C
Reliable performance, easy operation, reliable quality

Specifications
Output Pressure 2.5 kPa to 25kPa （ 0.36PSI to 3.63PSI ， adjustable ）
Output Capacity 15 liters/minute
Power Source 220VAC±20%,50Hz/60Hz
Battery Power 48VDC±10%
Power Consumption At 220VAC/50Hz Less than 30 watts At 48VDC Less than 30W
Sound Lever Less than 40dBA@1 meter
Out Dew Point -30 ℃ (-22℉ ) or better
Operating Temperature Range -5 ℃ to +50℃ (+23℉ to +122℉ )
Relative Humidity 85% at ambient temperature of +23℃
Desiccant High quality silica gel
Storage Temperature -20 ℃ to +65℃
Air Connection for Hose 4mm (1/6") inside diameter
Alarms Excess run alarm ,at Work on for 30 minutes
Mounting Wall-mounting
Dimensions (about: H×W×D) 483mm ×285mm×144mm
Weight ～ 8kg
