0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector

0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector
0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector 0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector 0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector 0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector 0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector
Inquiry Form

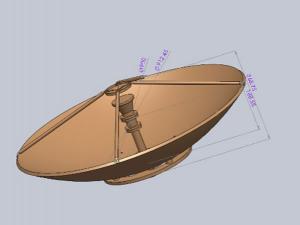

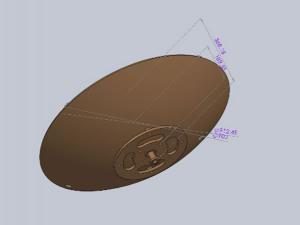

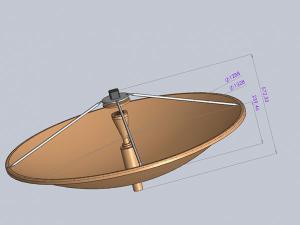

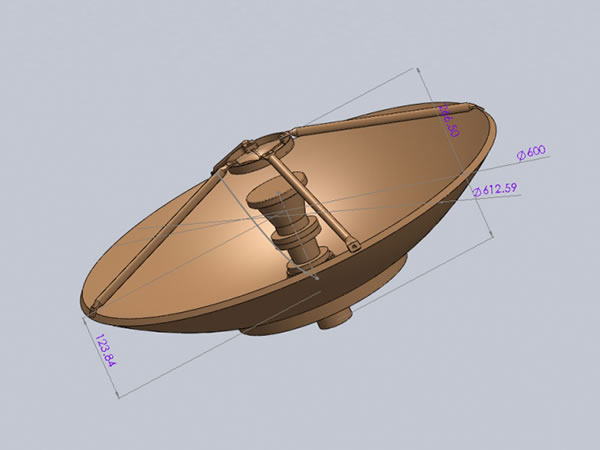

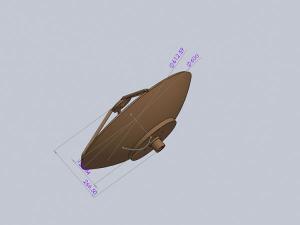

Features of 0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector
Ÿ● Whole aluminum or carbon fiber panel
● Approvals or Compliance: ASIASAT, APT, CHINA SATCOM, SINOSAT, CHINA ORIENT, INTELSAT, EUTELSAT
Ÿ● Factory feed system assembled to reduce installation time
● Excellent in stability
● ŸDual shape ring-focus design
Ÿ● High gain and excellent sidelobe performance

Main parts
● Feed horn
● OMT ＆ Filter
● Panel
● Connecting interface

Options
● POL motorized
● Customized available

Approvals or Compliance
● ASIASAT
● APT
● CHINA SATCOM
● SINOSAT
● CHINA ORIENT
● INTELSAT
● EUTELSAT

Specification of 0.6m,0.9m,1.288m Ku-band Aluminum & Carbon Fiber VSAT Antenna Reflector
◆ R.F SPECIFICATIONS 0.6m VSAT Antenna Reflector 0.9m VSAT Antenna Reflector 1.288m VSAT Antenna Reflector
Ku-RECEIVE Ku-TRANSMIT Ku-RECEIVE Ku-TRANSMIT Ku-RECEIVE Ku-TRANSMIT
1. Frequency (GHz) 12.25-12.75 14-14.5 12.25-12.75 14-14.5 12.25-12.75 14-14.5
10.95-12.75 ★ 13.75-14.5 ★ 10.95-12.75 ★ 13.75-14.5 ★ 10.95-12.75 ★ 13.75-14.5 ★
2. Typical Gain (dBi) 36.03 at 12.5GHz 36.82 at 14.25GHz 39.55 at 12.5GHz 40.34 at 14.25GHz 42.67 at 12.5GHz 43.46 at 14.25GHz
3. VSWR 1.25:1 1.25:1 1.25:1
4. Beamwidth (-3dB) 2.595° 2.369° 1.730° 1.580° 1.209° 1.104°
5. Antenna Noise Temperature (K) 2Port Feed 2Port Feed 2Port Feed
10° Elevation 49K 45K 44K
20° Elevation 41K 39K 38K
40° Elevation 36K 35K 34K
6. Typical G/T at 20°EL 15.58dB/K (12.5GHz, 70K LNA) 19.18dB/K (12.5GHz, 70K LNA) 22.33dB/K (12.5GHz, 70K LNA)
7. Power Handling Capability 1KW/Port 1KW/Port 1KW/Port
8. Feed Interface WR-75 WR-75 WR-75
9. Feed Insertion Loss 0.25dB 0.2dB 0.25dB 0.2dB 0.25dB 0.2dB
10. Rx to Tx Isolation ≥85dB ≥85dB ≥85dB
11. Cross Pol Isolation
On Axis ≥35dB
12. Sidelobes CCIR.580-6
◆ MECHANICAL SPECIFICATION ◆ ENVIRONMENTAL SPECIFICATION
1. Antenna Type Ring-focus 1. Ambient Temperature -40°C to 60°C
2. Drive Type Manual / Motorized 2. Rain 100mm/h
3. AZ Travel ±90° 3. Relative Humidity 0 to 100%
4. Reflector Material Precisoin formed aluminum /
Carbon fiber 		4. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2)
5. Reflector Segments 1 5. Ice 25mm on all surface or 13mm on
all surface with 130km/h wind gusts
6. Mount Type Connecting interface 6. Shock and Vibration As encountered during shipment by commercial air, sea or truck
7. Surface Accuracy 0.5mm / 0.3mm (R.M.S) 7. Seismic (Survival) 0.3G's horizontal, 0.15G's vertical
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
