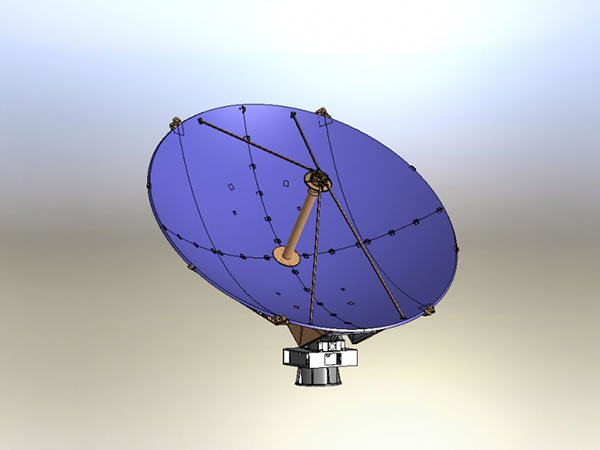

Features of 4.5m Foldable Carbon Fiber Vehicle-mounted Antenna
● Dual shape ring-focus design
● Carbon fiber major reflector with high precision
● High gain and excellent sidelobe performance
● Well in anti-corrosion
● Excellent in stability
◆ R.F SPECIFICATIONS | C-Band | Ku-Band | ||
RECEIVE | TRANSMIT | RECEIVE | TRANSMIT | |
1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 |
3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ | |
2. Typical Gain(dBi) | 43.51 at 3.8GHz | 47.16 at 6.0GHz | 53.53 at 12.5GHz | 54.32 at14.25GHz |
3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
4. Beamwidth (-3dB) | 1.097° | 0.721° | 0.346° | 0.316° |
5. Antenna Noise Temperature(K) | 2 Port Feed | 2 Port Feed | ||
10°Elevation | 36K | 45K | ||
20°Elevation | 29K | 40K | ||
40°Elevation | 24K | 36K | ||
6. Typical G/T at 20°EL | 25.80dB/K (3.8GHz, 30K LNA) | 33.12dB/K (12.5GHz, 70K LNA) | ||
7. Power Handling Capability | 5KW/Port | 1KW/Port | ||
8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 |
9. Feed Insertion Loss | 0.25dB | 0.2dB | 0.3dB | 0.25dB |
10. Tx to Rx Isolation | ≥85dB | ≥85dB | ||
11. Axial Ratio (dB) | 1.5dB | 1.0dB | ||
12. Cross Pol Isolation | ||||
On Axis | ≥35dB | ≥35dB | ||
13. Sidelobes | CCIR.580-6 | CCIR.580-6 | ||
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
