Features of 2.4m Foldable Carbon Fiber Vehicle-mounted Antenna
● Carbon fiber panel and back bracket with high strength and high precision
● Antenna's light weight, low center of gravity effectively reducing the burden on the turntable

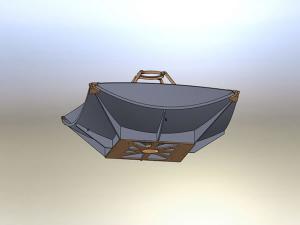

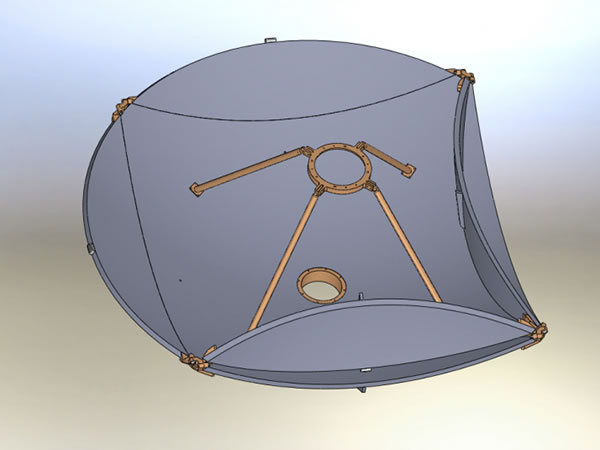

● Four sides foldable and expandable make antenna stowed conveniently
● Well in anti-corrosion
◆ R.F SPECIFICATIONS | C-band | Ku-Band | ||
RECEIVE | TRANSMIT | RECEIVE | TRANSMIT | |
1. Frequency (GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 |
3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ | |
2. Typical Gain (dBi) | 38.05 at 3.8GHz | 41.7 at 6.0GHz | 48.07 at 12.5GHz | 48.86 at 14.25GHz |
3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
4. Beamwidth (-3dB) | 2.056° | 1.352° | 0.649° | 0.592° |
5. Antenna Noise Temperature (K) | 2Port Feed | 2Port Feed | ||
10° Elevation | 38K | 43K | ||
20° Elevation | 31K | 38K | ||
40° Elevation | 27K | 34K | ||
6. Typical G/T at 20°EL | 20.20dB/K (3.8GHz, 30K LNA) | 27.74dB/K (12.5GHz, 70K LNA) | ||
7. Power Handling Capability | 5KW/Port | 1KW/Port | ||
8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 |
9. Feed Insertion Loss | 0.25dB | 0.2dB | 0.25dB | 0.25dB |
10. Rx to Tx Isolation | ≥85dB | ≥85dB | ||
11. Axial Ratio (dB) | 1.5dB | 1.0dB | ||
12. Cross Pol Isolation | ||||
On Axis | ≥35dB | ≥35dB | ||
13. Sidelobes | CCIR.580-6 | CCIR.580-6 | ||
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
