0.4m Carbon Fiber Flyaway Antenna

0.4m Carbon Fiber Flyaway Antenna
0.4m Carbon Fiber Flyaway Antenna 0.4m Carbon Fiber Flyaway Antenna 0.4m Carbon Fiber Flyaway Antenna
Inquiry Form

Features of 0.4m Carbon Fiber Flyaway Antenna:
● 1 carbon fiber panels
● Nylon backpack case for tripod type
● High gain and excellent sidelobe performance
● 5 Minutes Setup
● Easy & fast fine elevation adjustment

Specification of 0.4m Carbon Fiber Flyaway Antenna
◆ R.F Specifications Ku-Band
Receive Transmit
1. Frequency(GHz) 12.25-12.75 14-14.5
2. Gain(dBi) ≥ 31.3+20log(F/12.5)dBi ≥ 32.5+20log(F/14.25)dBi
3. Antenna Shape Parabolic
4. Sidelobes CCIR.580-6
5. The First Sidelobe Level -14dB
6. Polarization Linear Pol
7. Tx to Rx Isolation ≥ 85dB(Including filter)
8. Cross Pol Isolation
On Axis ≥ 30dB
9. VSWR ≤ 1.3:1 ≤ 1.3:1
10. Feed Interface WR75 WR75
◆ Mechanical Specification ◆ environmental Specification
1. Antenna Type Offset 1. Wind Loading, Operational (With Ballast) ≤ 14m/s
2. Drive Type Manual 2. Temperature, Operational -40°C to 60°C
3. AZ Travel ±90° 2. Temperature, Storage -55°C to 70°C
4. EL Travel 10° to 90° 3. Rain 12mm/h
5. POL Travel ±90° 4. Relative Humidity 0 to 100%
6. Reflector Material Carbon fiber 5. Solar Radiation 360 BTU/h/ft 2 (1000Kcal/h/m2)
7. Reflector Segments 1 6. Ice 12mm

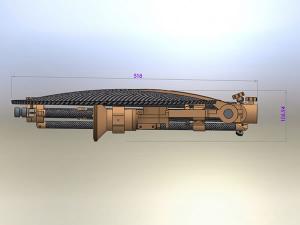

8. Mount Type Tripod 12. Stowed Size ≤ 540mm × 400mm × 110mm (Excluding LNB, power amplifier, power supply and other followed equipment)
9. Surface Accuracy 0.3mm (R.M.S)
10. Antenna Weight(N.W.) ≤ 3.5kg
11. Feed Holder Bearing ≤ 1.0kg
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
